Civil 3D Parcel Label Style: A step by step tutorial guide

Introduction to Civil 3D Parcel Label Style

Firstly, what is a Civil 3D Parcel Label Style? Well, let's find out in this online training course. Certainly, this step by step tutorial is a part of the Civil 3D essentials book and how-to manuals.

Working with Civil 3D?

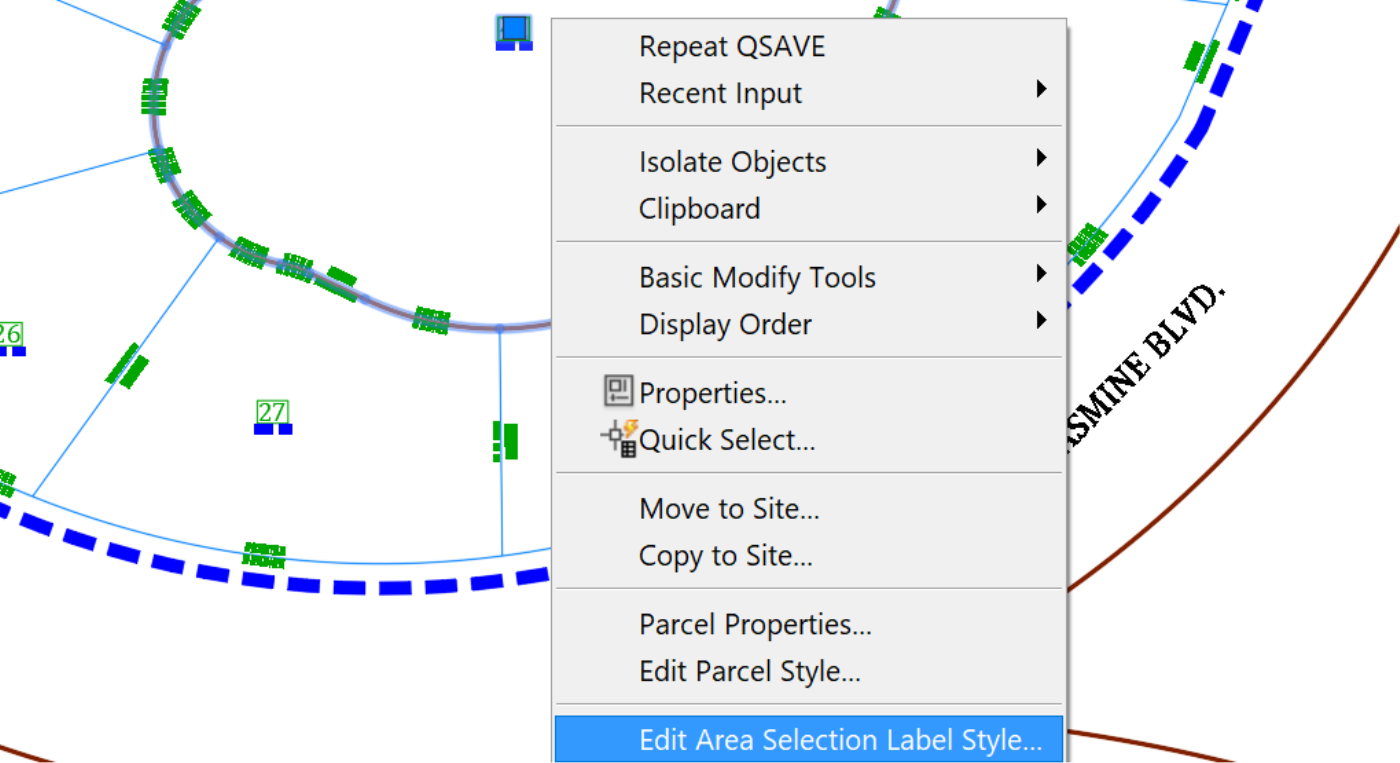

Now, we need to change the Parcel Label Style, the annotation that displays the road area information. Select the road parcel, right-click, and click Edit Area Selection Label Style.

$C:\Users\Infratech.Civil\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\106FB2E3.tmp$
Change the Parcel Label Style to Right Of Way.

$C:\Users\Infratech.Civil\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\CF1D8788.tmp$

We have now applied a right-of-way Parcel Label Style to the street area.

$C:\Users\Infratech.Civil\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\84C811E9.tmp$
